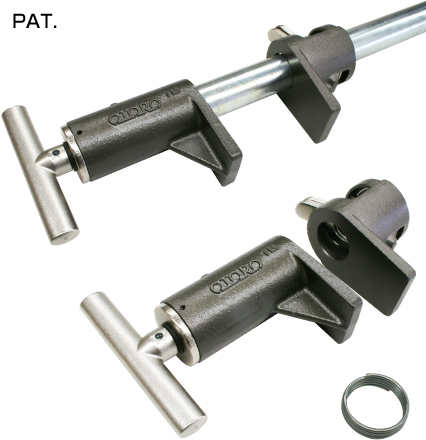

There is no offset with the Pipe Clamp!
It is designed so that the handle’s axis of rotation is placed in the center of the pipe. This creates a more even pressure on your material for less slippage and less bar bend. It makes for a more smooth, consistent, and easy experience.
*Pipe is not included in the clamp set.
Details
1. The T-shaped handle is very nice for your hand. The handle's cross section is a wide-ellipse design to ensure comfort during use.

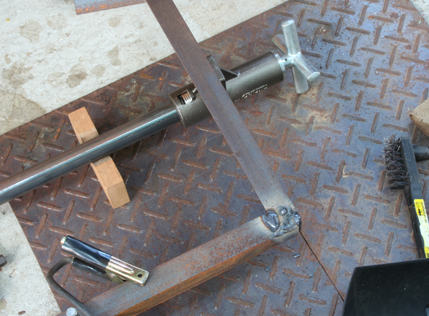

2. The moving mechanism area of the screw is within the body of the clamp. It’s safer and avoids getting dusty and rusty. It will keep working smoothly! Rest assured, you can use this product safely, even when using a welder. No more sparks jamming the clamp’s mechanism.

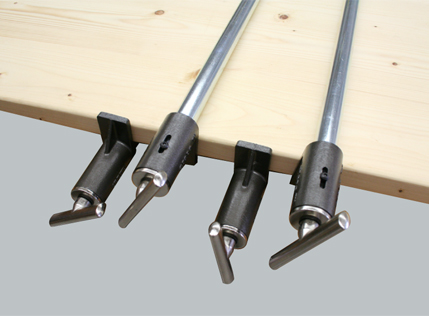

3.You can place the OTORO clamps close together with little-to-no interference.
Specifications
Corresponding pipe size: 3/4"
Item weight without pipe: about 1.5Kg
Material: Iron
The total length of pipe |
Usable clamping area |
1100mm |
990mm |
1200mm |
1090mm |
1500mm |
1390mm |
2000mm |
1890mm |
Accessories

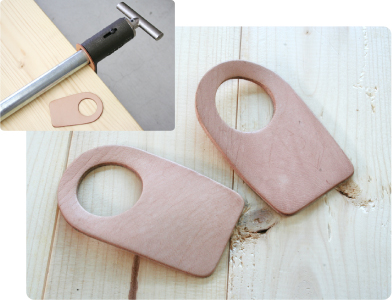

Leather Clamp Pad (2 pieces / set)
It will protect your more sensitive materials.
Please use glue or double-sided tape if you want to attach it to the OTORO clamp.
