Not only for assembling!
OTORO’s pen press enables you to disassemble pen parts.
Reliable and accurate press lets your work way better !!!
OTORO’s new pen press helps your work with the following features.:
- Parallel pressing method for precise assembling.
- Accurate adjustment less than 1 mm.
- Hand screw with acme thread for high tension pressing.
- Quick-release mechanism.
Pen disassembling kit is included !
You probably have experienced, at least once, that,:
“Pressed pen mechanism too deep...”
“Made a gap between pen parts and pen blank...”
Once you messed up in assembling, you had to trash your work….. until now.
The pen disassembling kit solves all of these problems.
Use 3 rods and 1 tube in the kit, and you can easily remove pen parts from pen blanks. Never waste pen parts again !
The pen disassembling kit is available for various pens with 7 mm tube, except certain pens.
Details

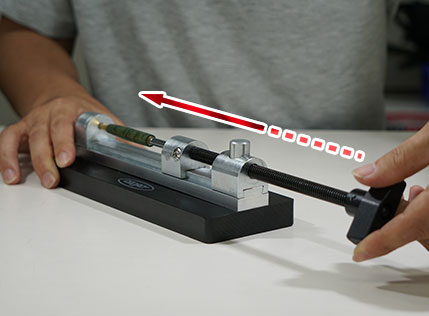

Keeps pen parts stable in horizontal alignment while pressure is applied, and prevents bowing in any direction and ensuring proper assembly.

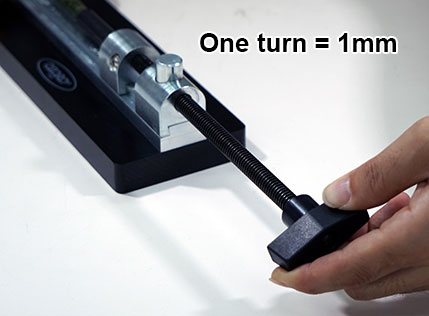

Micro-adjustable press handle for fine-tuned length adjustments, : press 1mm deeper per one turn.
The quick release mechanism.
By pressing the lock button, you can easily and quickly adjust the depth of pressure.

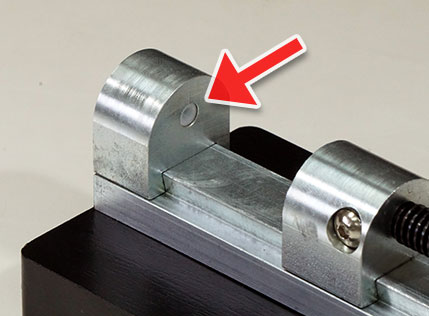

The resin central pit prevents scratches on pen tips.

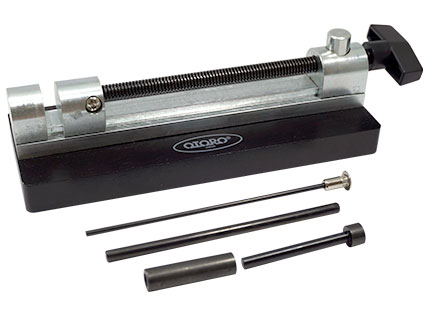

OTORO Disassembly-Plus pen press includes four unique tools to disassemble and re-assemble pen parts.
These tools are available for various pen kits with 7mm tubes.
How to use

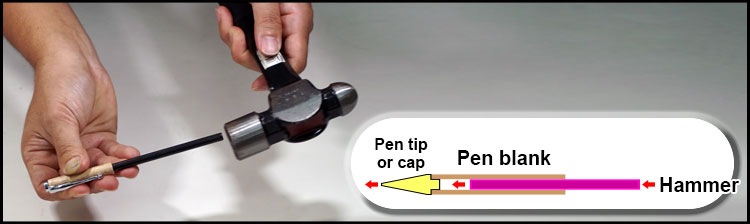

Disassembly pen kit’s function #1:
Remove press-fitted pen tip and cap from the pen blank using with a hammer.
|

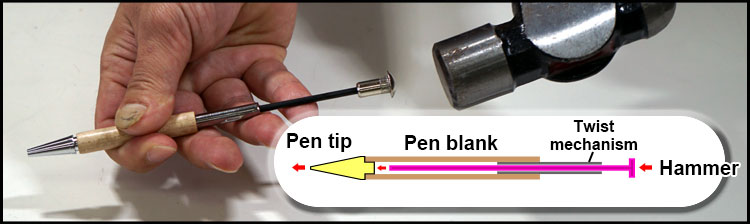

Disassembly pen kit’s function #2:
Remove press-fitted pen mechanism from pen blank.
|

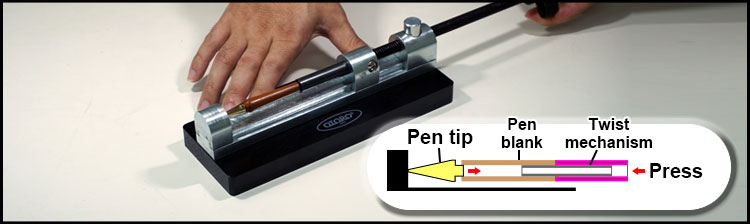

Disassembly pen kit’s function #3:
Remove pen tip from pen blank even after pen mechanism has been press-fitted.
|
Disassembly pen kit’s function #4:
Press pen tip even after pen mechanism has been press-fitted.
|
Specifications
Size: W250 x D82 x H66 mm
Capacity: 145mm
Includes:
A pen press
A disassembling kit
